LRM1071/00 – General description

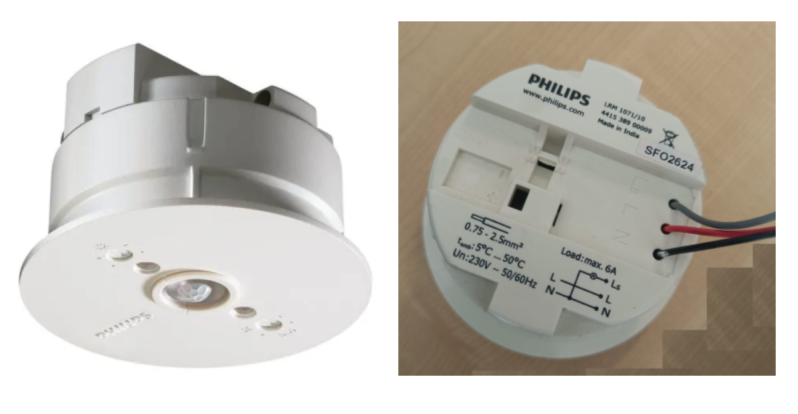

The Occuswitch is a movement detector with a build-in switch. It will switch off the lights in a room or area when it is vacated and thus save up to 30% of electrical energy. The Occuswitch can switch any load up to 6 A and control an office area of around 20m2.
Applications
The Occuswitch is designed for use in offices and similar applications, including toilets, storage rooms, etc. It is optimized for recessed ceiling mounting and for mounting heights between 2.5 and 3.5 meter.
The surface box allows surface-mounting as well, with either recessed wiring or surface-mounted ducts.
The Occuswitch’s detection pattern (see drawing) is 4 by 5 meters for small movements (desk work) and 6 by 8 meters for larger movements like walking.
